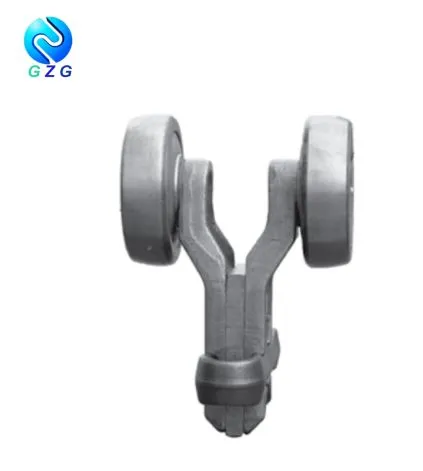

Drop-forged Trolley and Reverse Trolley are also an attachment of rivertless chains for conveyors. We provide both trolley and revers trolley. Main types of them are X348, X458, X678, XT100, XT160, S348, 678. The trolley top rolls in a guide, the bottom of it in connecting the conveyor chain which could deliver kinetic energy. GZG drop-forged trolley is qulified to show qulities like high loading, smooth gliding perfermance, standard size.
Drawing and dimensions of Drop-forged Trolley
 | |||||||||||
| Chain No. | Dimensions | Weight | |||||||||
| P | H | A | K | E | F | B | T | C | D | ||
| mm | mm | mm | mm | degree | mm | mm | mm | mm | mm | Kg/Set | |
| X348-1 | 100.0 | 64.0 | 102.0 | 84.0 | 4 | 47.8 | 14.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X348-2 | 100.0 | 63.5 | 122.0 | 94.0 | 6 | 48.0 | 18.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X458-1 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| X458-2 | 128.5 | 82.5 | 131.0 | 109.0 | 4 | 54.0 | 20.0 | 10.0 | 54.0 | 80.0 | 3.00 |
| X458-3 | 150.0 | 103.0 | 138.0 | 106.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.20 |
| X678 | 170.0 | 102.0 | 171.0 | 145.0 | 4 | 70.0 | 24.0 | 12.7 | 85.0 | 120.0 | 7.40 |
| XT100 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| XT160 | 171.0 | 103.0 | 180.0 | 140.0 | 6 | 70.0 | 26.0 | 16.0 | 84.0 | 120 | 8.80 |
 | ||||||||||||
| Chain No. | Dimensions | Weight | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | degree | mm | mm | mm | mm | mm | mm | Kg/Set | |
| S348 | 100.0 | 65.8 | 143.0 | 104.0 | 3 | 47.8 | 22.0 | 6.0 | 40 | / | 60 | 1.5 |
 | ||||||||||||
| Chain No. | Dimensions | Weight | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| mm | mm | mm | mm | degree | mm | mm | mm | mm | mm | mm | Kg/Set | |
| 678 | 136.0 | 89.0 | 146.0 | 114.0 | 4 | 54.0 | 18.0 | 10.0 | 86.0 | 54 | 82.00 | 3.6 |
Drawing and dimensions of Drop-forged Reverse Trolley
 | ||||||||
| Chain No. | Dimensions | Weight | ||||||
| P | H | A | F | T | C | D | ||
| mm | mm | mm | mm | mm | mm | mm | Kg/Set | |
| X348 | 86.0 | 48.0 | 93.0 | 55.0 | 6.0 | 40.0 | 60.0 | 1.3 |
| X458 | 95.0 | 44.0 | 120.0 | 54.0 | 10.0 | 54.5 | 82.0 | 2.5 |
Attachment for Trolley
 | ||||||||||
| Chain No. | Dimensions | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 135.5 | 47.8 | 80.0 | 25.4 | 8.5 | 13.5 | 6.0 | 14.0 | / |
| X458 | 54.0 | 148.2 | 54.0 | 52.5 | 33.5 | 10.5 | 13.5 | 10.0 | 17.0 | / |
| X678 | 76.2 | 177.8 | 70.0 | 92.0 | 41.5 | 13.5 | 20.5 | 12.7 | 20.8 | / |
| XT160 | 80.0 | 248.0 | 70.0 | 107.0 | 43.5 | 13.0 | 20.0 | 16.0 | 32.0 | / |
 | ||||||||||
| Chain No. | Dimensions | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 68.0 | 47.8 | / | 25.4 | 8.3 | / | 6.0 | / | / |
| X458 | 54.0 | 85.0 | 54.0 | / | 33.5 | 11.5 | / | 10.0 | / | / |
| X678 | 80.0 | 110.0 | 70.0 | / | 41.5 | 13.5 | / | 12.7 | / | / |
| XT160 | 80.0 | 110.0 | 70.0 | / | 43.5 | 13.0 | / | 16.0 | / | / |
 | ||||||||||
| Chain No. | Dimensions | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 38.1 | 146.1 | 47.8 | 39.7 | 25.4 | 8.3 | 3.6 | 6.4 | / | 1/2-13UNC |
| X458 | 50.8 | 177.8 | 54.0 | 47.6 | 33.5 | 10.3 | 5.0 | 9.5 | / | 5/8-11UNC |
| X678 | 76.2 | 222.0 | 70.0 | 66.7 | 41.5 | 13.5 | 5.6 | 12.7 | / | 7/8-9UNC |
| XT160 | 78.0 | 225.0 | 70.0 | 67.0 | 43.5 | 13.0 | 5.0 | 16.0 | / | M24X3 |
